Amorphous

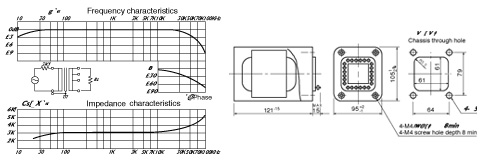

Output Transformers F-5000 Series
|
Part
Number |
Impedance |
Frequency Range |
Output |
Primary Maximum DC Current |
Primary Inductance |
|
PRI |
SEC |
Balance |
Unbalance |
DC
0mA |
DC
100mA |
| F-5001 |
2K*(single) |
4*,8*,16* |
10~100kHz |
8W |
100mA |
---- |
15H |
| F-5002
|
3K*(single) |
4*,8*,16* |
10~100kHz |
8W |
100mA |
---- |
18H |
| F-5003 |
5K*(single) |
4*,8*,16* |
10~100kHz |
8W |
100mA |
---- |
20H |
| F-5004* |
7K*(single) |
8*,16* |
10~80kHz |
8W |
100mA |
---- |
23H |
| F-5005 |
3.5K*(push) |
4*,8*,16* |
10~100kHz |
42W |
120mAx2 |
10mA |
100H |
70H
(10mA) |
| F-5006 |
5K*(push) |
4*,8*,16* |
10~100kHz |
42W |
120mAx2 |
10mA |
160H |
80H
(10mA) |
| *
discontinued / not available anymore |
Permalloy Output Transformers
F-7000 Series
| Part
Number |
Impedance |
Primary DC Current (mA) |
Frequency (Hz) |
Output (W) |
Primary Inductance TYP (H) |
| PRI |
SEC |
| F-7001 |
3K |
0-4-8-16 |
100 |
15~60K |
8 |
20 |
| F-7002
|
3.5K |
0-4-8-16 |
100 |
15~50K |
10 |
25 |
| F-7003 |
5K |
0-4-8-16 |
100 |
15~50K |
10 |
30 |
| F-7004* |
7K |
0-4-8-16 |
50 |
15~30K |
5 |
25 |
| F-7020 |
3.5K |
0-4-8-16 |
150x2
10mA (UB) |
20~80K |
70 |
100 |
| F-7021 |
5K |
0-4-8-16 |
150x2
10mA (UB) |
20~80K |
70 |
200 |
| *
discontinued / not available anymore |
Output Transformers -
F-2000 Series
| Part
Number |
Impedance |
Frequency Range |
Output |
Primary Maximum DC Current |
Primary Inductance |
|
PRI |
SEC |
| F-2003 |
3.5K |
8*,16* |
30~100kHz |
8W |
100mA |
13H |
| F-2004 |
5K |
8*,16* |
30~80kHz |
8W |
100mA |
16H |
| F-2005 |
7K |
8*,16* |
30~70kHz |
8W |
100mA |
21H |
| F-2006 |
2K |
4*,
8*,16* |
10~60kHz |
10W |
100mA |
17H |
| F-2007 |
3K |
4*,8*,16* |
10~60kHz |
10W |
100mA |
25H |

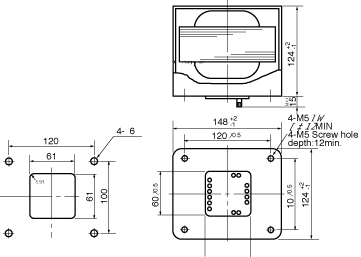

Output Transformers
F-2010 Series
| Part
Number |
Impedance |
Frequency Range |
Output |
Primary Maximum DC Current |
| PRI |
SEC |
Balance |
Unbalance |
| F-2011 |
3.5K
|
4*,8*,16* |
5Hz~100kHz |
100W |
200mAx2 |
5mA |
| F-2012 |
5K |
4*,8*,16* |
10Hz~80kHz |
100W |
180mAx2 |
5mA |
| F-2013 |
10K |
4*,8*,16* |
20Hz~50kHz |
40W |
100mA |

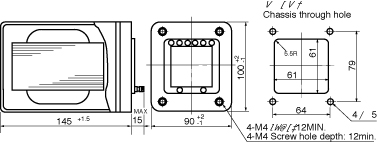

Output Transformers F-2020
Series
| Part
Number |
Impedance |
Frequency Range |
Output |
Primary Maximum DC Current |
|
PRI |
SEC |
Balance |
Unbalance |
| F-2020 |
3.5K
|
4*,8*,16* |
10~100kHz |
50W |
150mAx2 |
10mA |
| F-2021 |
5K |
4*,8*,16* |
10~80kHz |
50W |
130mAx2 |
10mA |
Output Transformers - F Series
| Part
Number |
Impedance |
Frequency Range |
Output |
Primary Maximum DC Current |
|
PRI |
SEC |
Balance |
Unbalance |
| F-475 |
5K (single) |
4*,8*,16* |
30~50kHz |
7.5W |
45mA |
| F-483 |
5K (push) |
4*,8*,16* |
30~50kHz |
15W |
110mAx2 |
10mA |
| F-485 |
8K (push) |
4*,8*,16* |
30~50kHz |
15W |
110mAx2 |
10mA |
| F-486 |
10K (push) |
4*,
8*,16* |
30~50kHz |
15W |
110mAx2 |
10mA |
| F-682 |
3.5K (push) |
4*,8*,16* |
30~50kHz |
30W |
200mAx2 |
20mA |
| F-683 |
5K (push) |
4*,8*,16* |
30~50kHz |
30W |
150mAx2 |
10mA |
| F-684 |
6.6K (push) |
4*,8*,16* |
30~50kHz |
30W |
150mAx2 |
10mA |
| F-685 |
8K (push) |
4*,8*,16* |
30~50kHz |
30W |
150mAx2 |
10mA |
| F-781 |
2.5K (push) |
4*,8*,16*,32* |
30~50kHz |
50W |
250mAx2 |
20mA |
| F-782 |
3.8K (push) |
4*,8*,16*,32* |
30~50kHz |
50W |
250mAx2 |
20mA |
| F-783 |
5K (push) |
4*,8*,16*,32* |
30~50kHz |
50W |
250mAx2 |
20mA |
|
