Django transformer passive preamplifier

The Django represents the ultimate transparency as expected with a passive attenuator, but with dynamics. Many listeners have been amazed at the dynamic shadings even at the lowest listening levels. The difference compared to resistor based passive attenuators is that resistors throw away signal as heat, were as the Django uses a transformer volume control. This means when the voltages is stepped down, the current is stepped up (without energy loss). This gives the Django the power to drive long interconnects even better then an active preamplifier. Ideal match for the Ladyday, Joplin and the Ella. Complete with a full colour assembly manual.

Silk AudioTVC Supermalloy SQ annealed core, MU shielded, 23 steps, high purity copper/teflon leadout wires, beautiful stainless 5x7cm can with mounting brackets.

The new premium core will offer immediate +40% increase in permability with even lower hysteresist and coercive force. The new core has almost double the permability! the new SILK Supermalloy products will have higest inductance, highest Q factor, lowest hysteresist & coercive force. Transfer of signal energy (even minute details) will improve to the new level. And bass to rock the foundations: at 20Hz, the new TVC will have around 1,100 to 1,200h. The quality difference between this and typical permalloy is huge!



Specifications: (may change without notice)

• 5 inputs: 4pr RCA inputs and 1pr real XLR balanced inputs
• 1 pr RCA outputs and 1 pr genuine XLR balanced outputs
• selector control extension places switch close to the input jacks -critical on the inputs especially for low Zout sources
• switch to make/break input-output ground bus for hum and ground loop control
• Gain: 0dB and +6dB switch
• XLR/RCA switch
• SQ supermalloy transformers with high purity teflon lead outs
• non-magnetic chassis
• size not including knobs: 91 x 300 x 320mm
• silver solder
• teflon copper hookup wire
• TVC IsoMount blocks
• Seiden selector and volume control switches
• Miyama toggles - from Japan

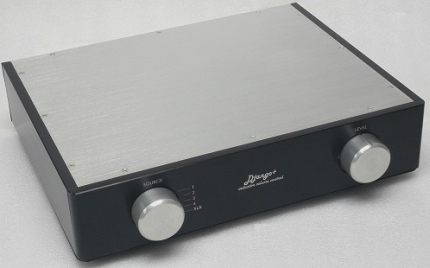

• includes standard RCA jacks (shown in picture are the upgraded silver RCA jacks)
