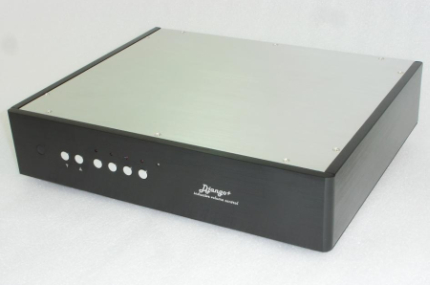

Django+ transformer passive preamplifier
with remote control

The difference compared to resistor based passive attenuators is that resistors throw away signal as heat were as the Django uses transformer volume control. This means when the voltages is stepped down the current is stepped up (without energy loss). This gives the Django the power to drive long interconnects even better then an active preamplifier. Ideal match for the Ladyday, Joplin and the Ella. Complete with a full colour assembly manual.

All the remote control functions have been pre-installed and connected.

Silk AudioTVC Supermalloy SQ annealed core, MU shielded, 23 steps, high purity copper/teflon leadout wires, beautiful stainless 5x7cm can with mounting brackets.

The new premium core will offer immediate +40% increase in permability with even lower hysteresist and coercive force. The new core has almost double the permability! the new SILK Supermalloy products will have higest inductance, highest Q factor, lowest hysteresist & coercive force. Transfer of signal energy (even minute details) will improve to the new level. And bass to rock the foundations: at 20Hz, the new TVC will have around 1,100 to 1,200h. The quality difference between this and typical permalloy is huge!


Specifications: (may change without notice)

• Input interface: 4 pair RCA
• Output interface: 2 pair RCA
• Ground: Switchable Hard / Soft / Float
• Gain: 0dB and +6dB switchable
• Attenuation: -52dB and mute
• 36cm wide x 29cm deep x 7.5cm tall
• Seiden switches (gold on silver enclosed contacts)
• pure soft annealed silver wire
• remote control volume and selector
• new design has non-magnetic chassis
